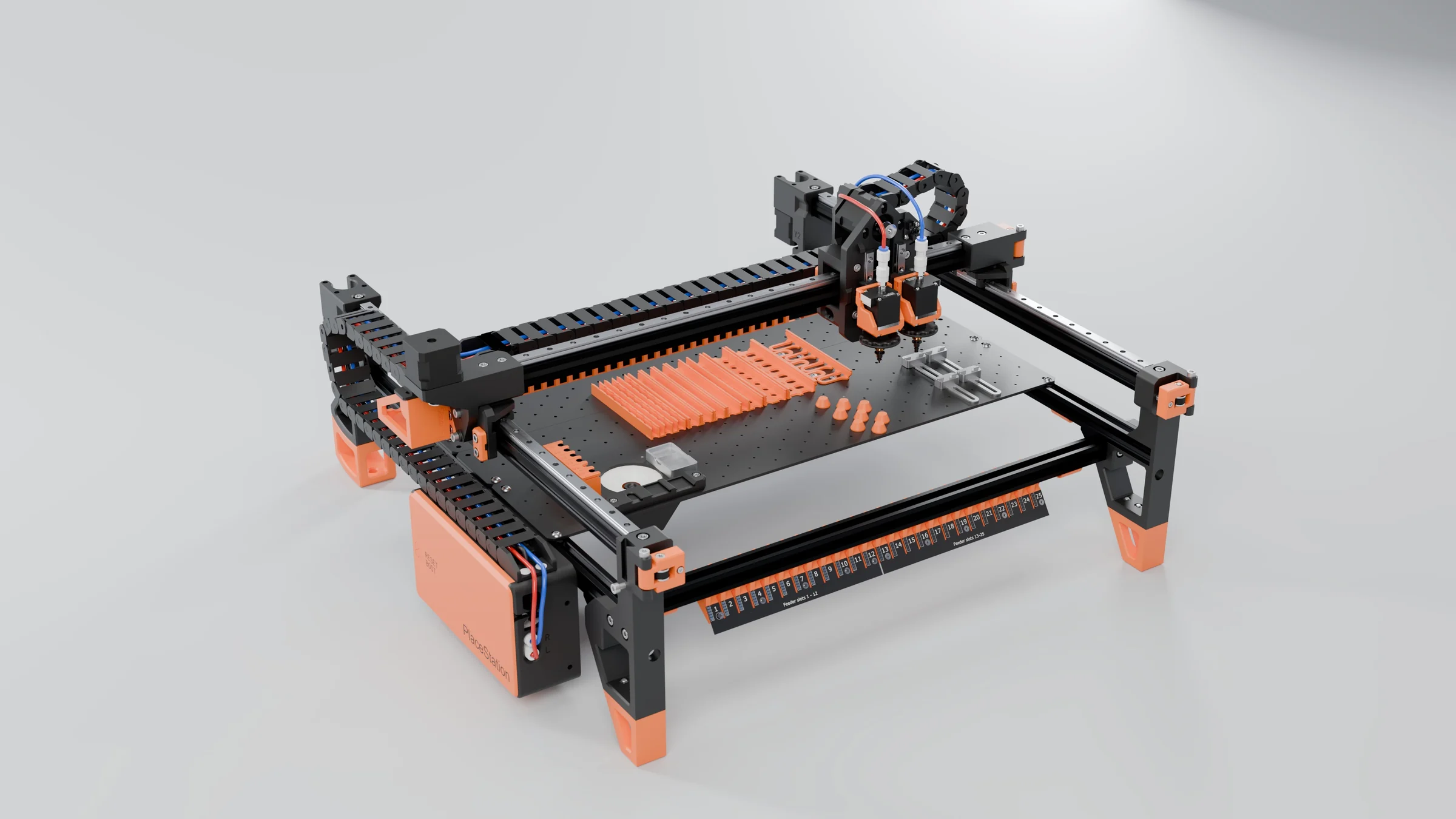

PlaceStation
In-house PCB assembly in 3 steps. A desktop pick-and-place machine with dual-camera vision and OpenPnP, plus our stencil printer and reflow oven for a complete SMT line on one bench. Designed and built in Kalyan.
Dual Camera vision
Top and bottom 1080p cameras0.4 mm pitch
Fine-pitch ICs, 0402 passivesopen Pnp compatible
Open-source control, no lock-in
In-house Pcb assembly in 3 steps
Paste

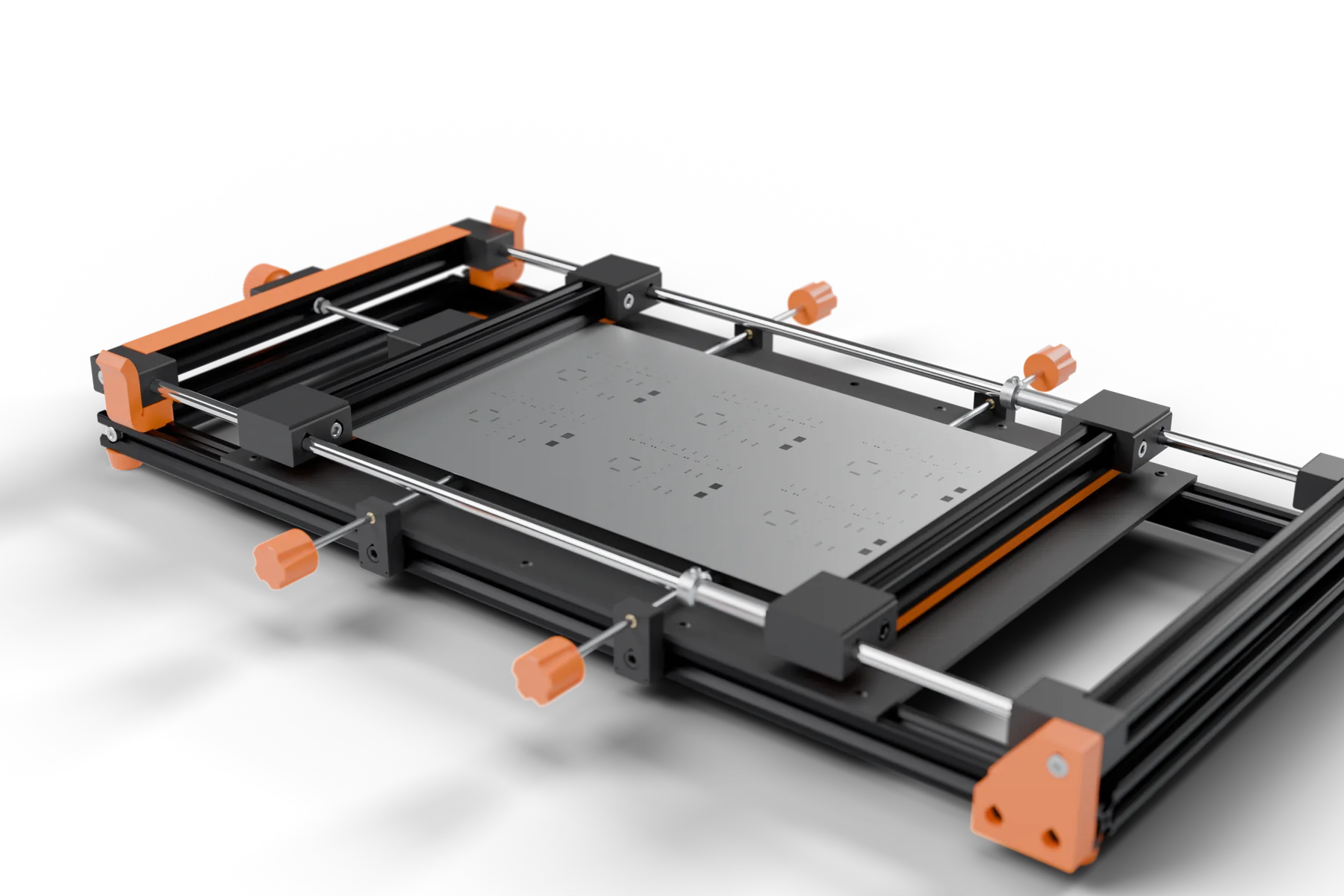

Step #1: Stencil station
Use a stencil to apply solder paste to your blank PCB, available as an easy add-on when you place your PCB order.
Our stencil printer lays down perfectly even solder paste every time. The rigid frame and PCB placement mean crisp pads and consistent joints, whether you’re assembling a single prototype or a short production run.
Get Crisp PCB PadsPlace
Step #2 - Place station
Placestation ensures every component is placed swiftly and precisely on your solder-pasted PCB.
The Placestation desktop machine picks and positions components - from 0402 passives to fine-pitch ICs - at speeds and accuracies rivaling full-scale factory lines. Dual-camera vision alignment ensures sub-0.1 mm repeatability with effortless setup.
See Sub-0.1mm RepeatabilityReflow

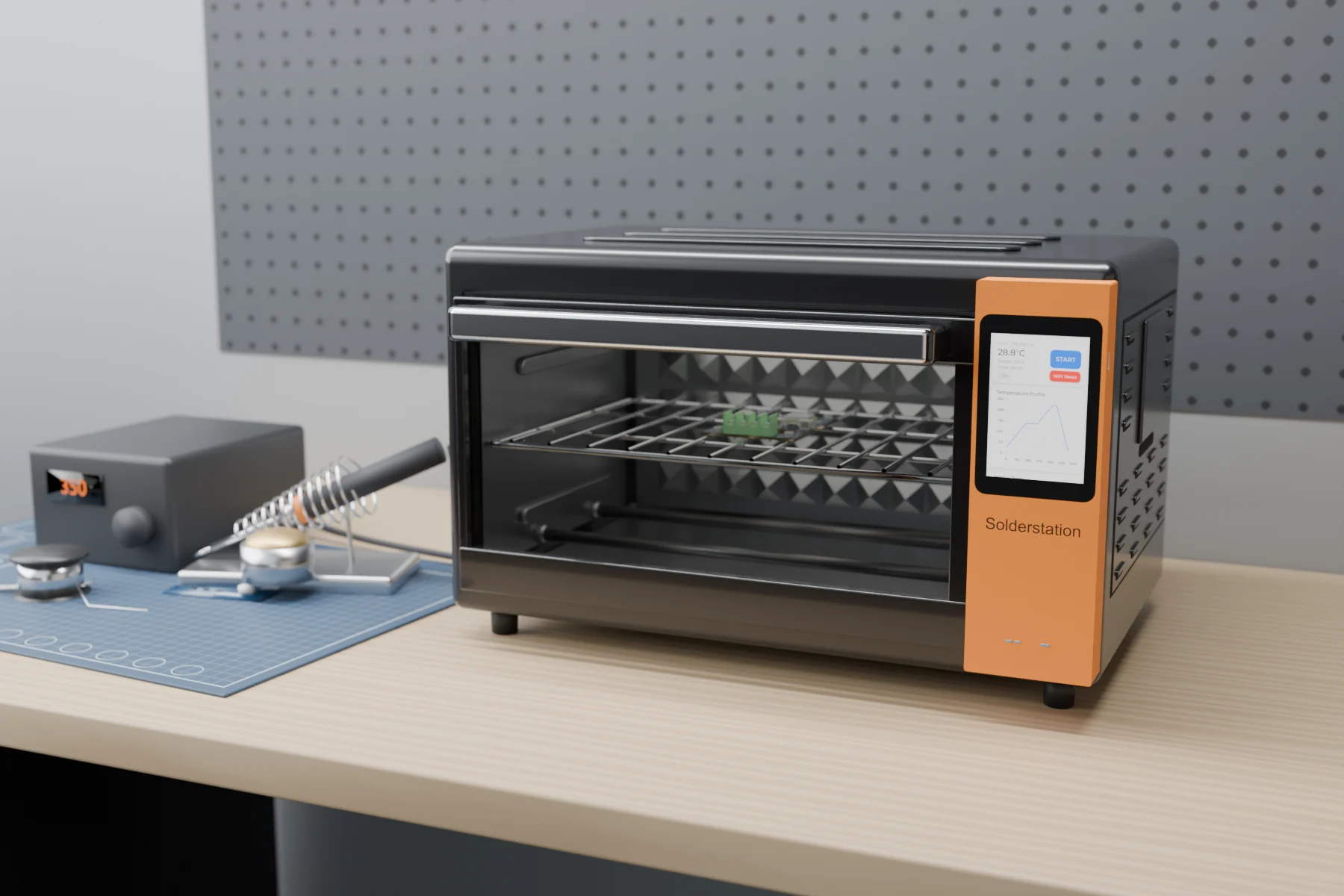

Step #3 - Solder station
A compact reflow oven fuses the solder paste, locking components onto your PCB with a flawless finish.
Finish the build with our compact reflow oven, tuned for modern lead-free profiles. Multi-zone temperature control delivers flawless solder joints and protects sensitive parts, so every board emerges production-ready.
Guarantee Flawless Solder JointsFrom the box to your desk
Every machine leaves Kalyan as pre-built modules in two laser-cut foam trays. Scroll to unbox one and put it together. These are the real CAD parts.
- Open the boxTwo laser-cut foam trays, every module in its own cavity.
- Lay it all outFeeder rails, gantries, control box, plates, cable chains and the hardware kit, side by side.
- Clear a deskA sturdy table of about 120 × 80 cm gives the machine room to work.
- Bolt it togetherLegs, feeder rails, X gantry, plates and control box, then the cable chains and vacuum tubes.
- Ready to calibratePlug it in and run the first calibration.
32 × 18 × 12 in7-ply carton
18 kgShipping weight
120 × 80 cmDesk space
Our Offerings
Choose the perfect bundle for your needs

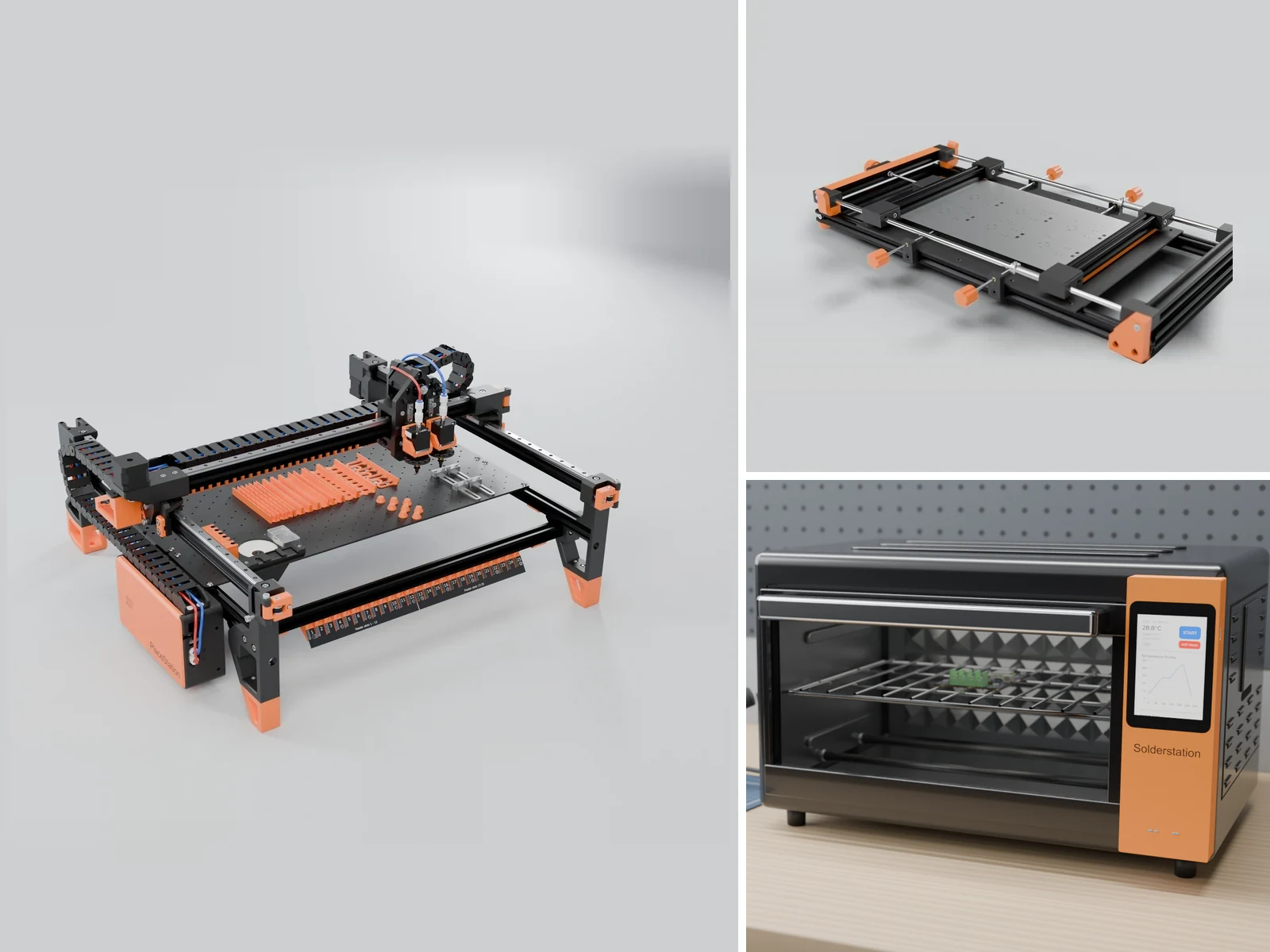

DescriptionComplete Lab bundle
Part no.BDL-LAB
- PlaceStation (Base or Pro)
- SolderStation reflow oven
- StencilStation stencil printer
- 5× Powered Feeders (8 mm or 12 mm)
From, excl. GST₹2,47,000₹2,57,000

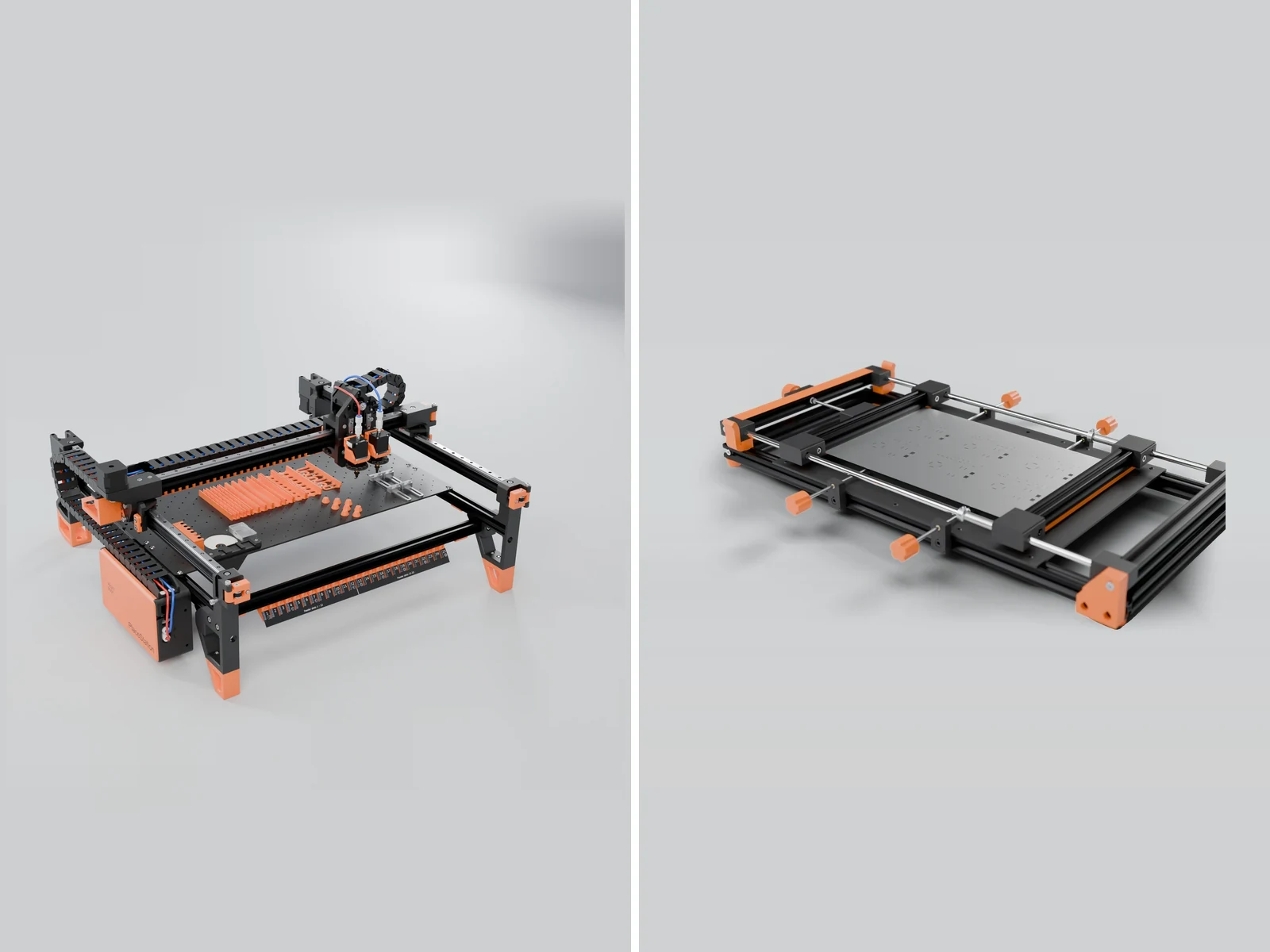

DescriptionPrototyping Bundle
Part no.BDL-PROTO
- PlaceStation (Base or Pro)
- StencilStation stencil printer
- 1× Powered Feeder (8 mm or 12 mm)
From, excl. GST₹2,04,000

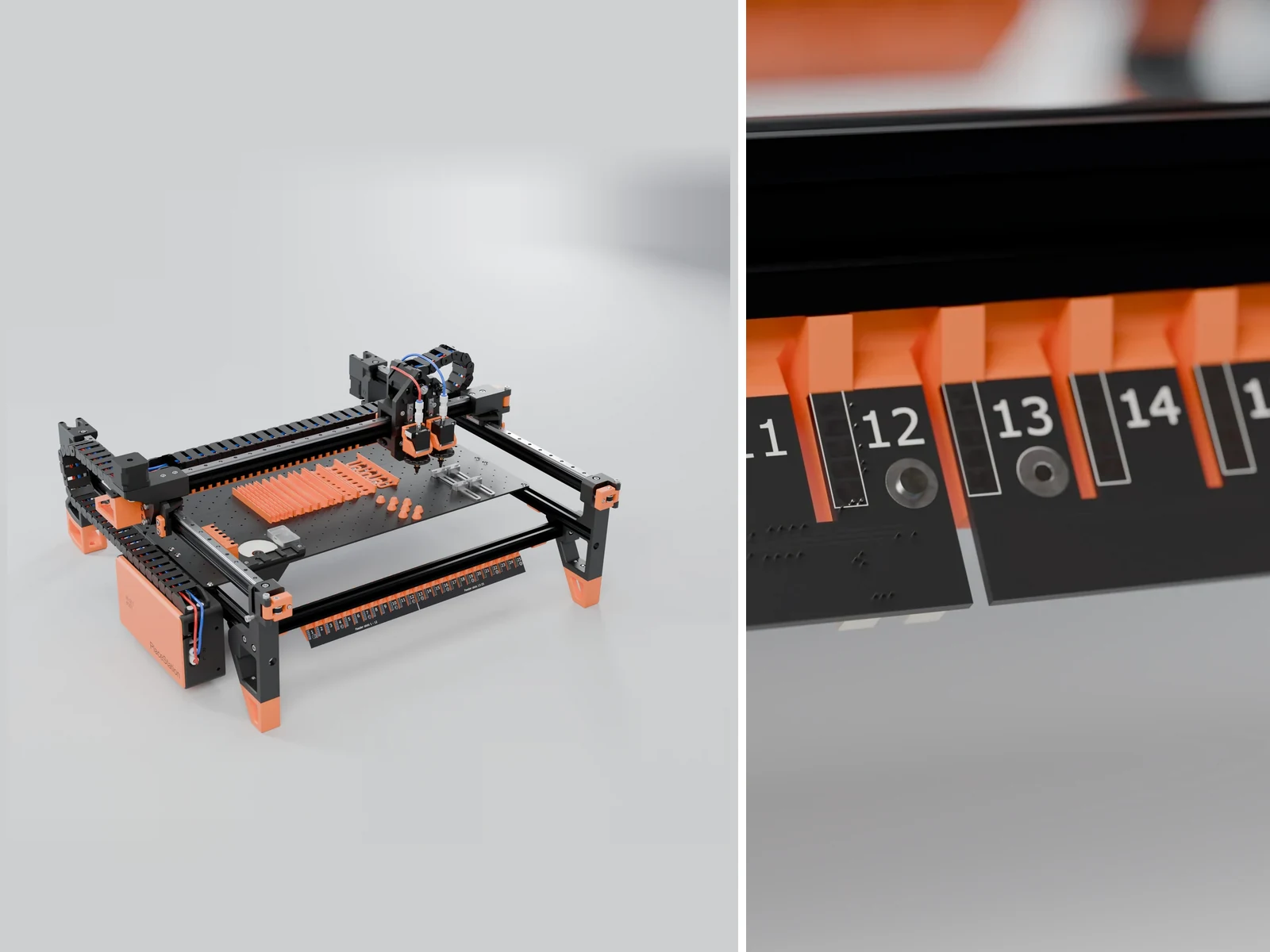

DescriptionPlacestation Basic bundle
Part no.BDL-BASIC
- PlaceStation (Base or Pro)
- 1× Powered Feeder (8 mm or 12 mm)
From, excl. GST₹2,04,500
