₹2,00,000
PlaceStation
Desktop SMT pick-and-place machine
Price, excl. 18% GST
Part no.PS-BASE
Free shipping across India. Dispatched from Kalyan, Maharashtra.
Variants
Quantity
DispatchUsually within 10 working days from Kalyan, with tracking
Warranty12 months on parts. Warranty details
InvoiceGST tax invoice (CGST + SGST or IGST) for input tax credit
PaymentUPI, cards and netbanking, or bank transfer (NEFT/RTGS)

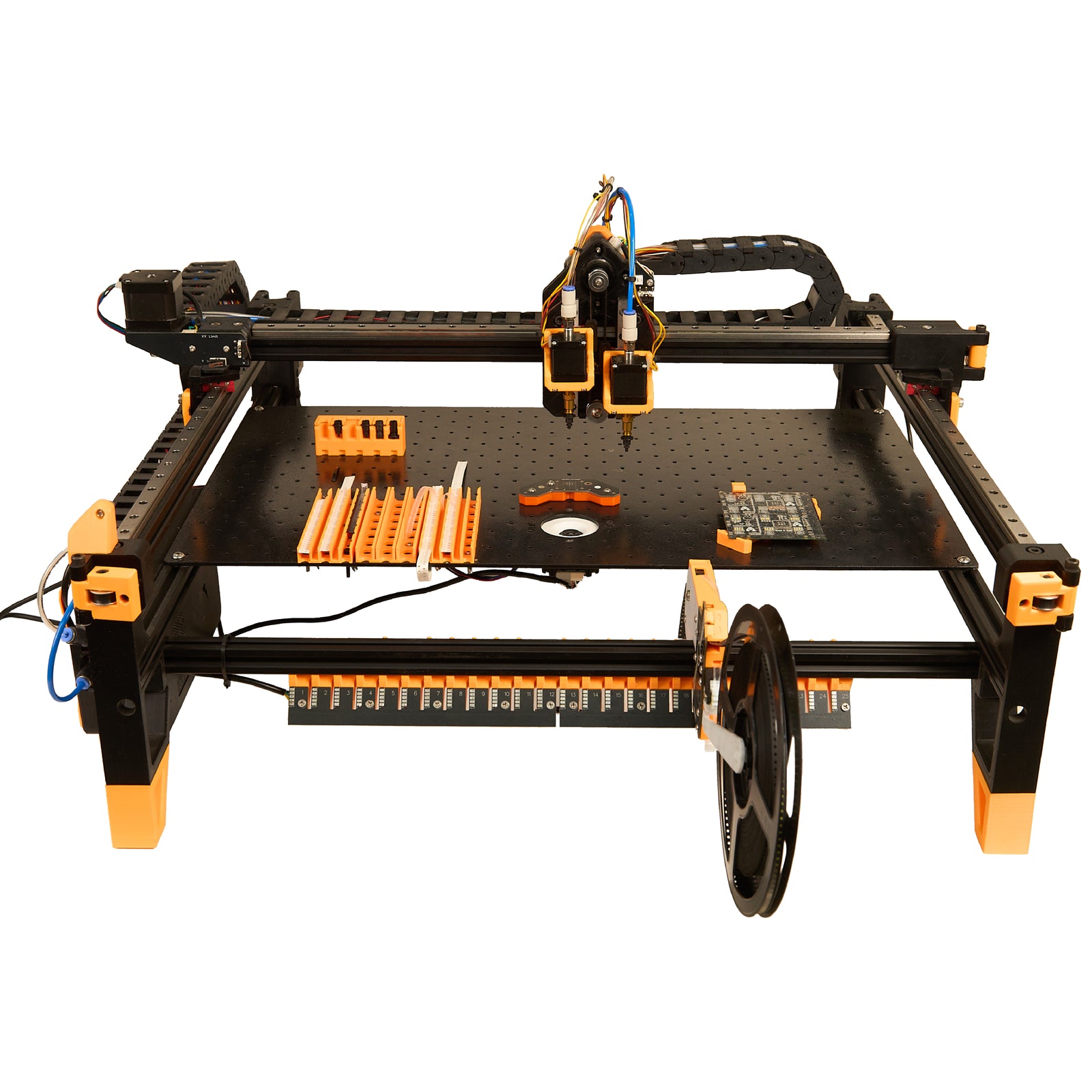

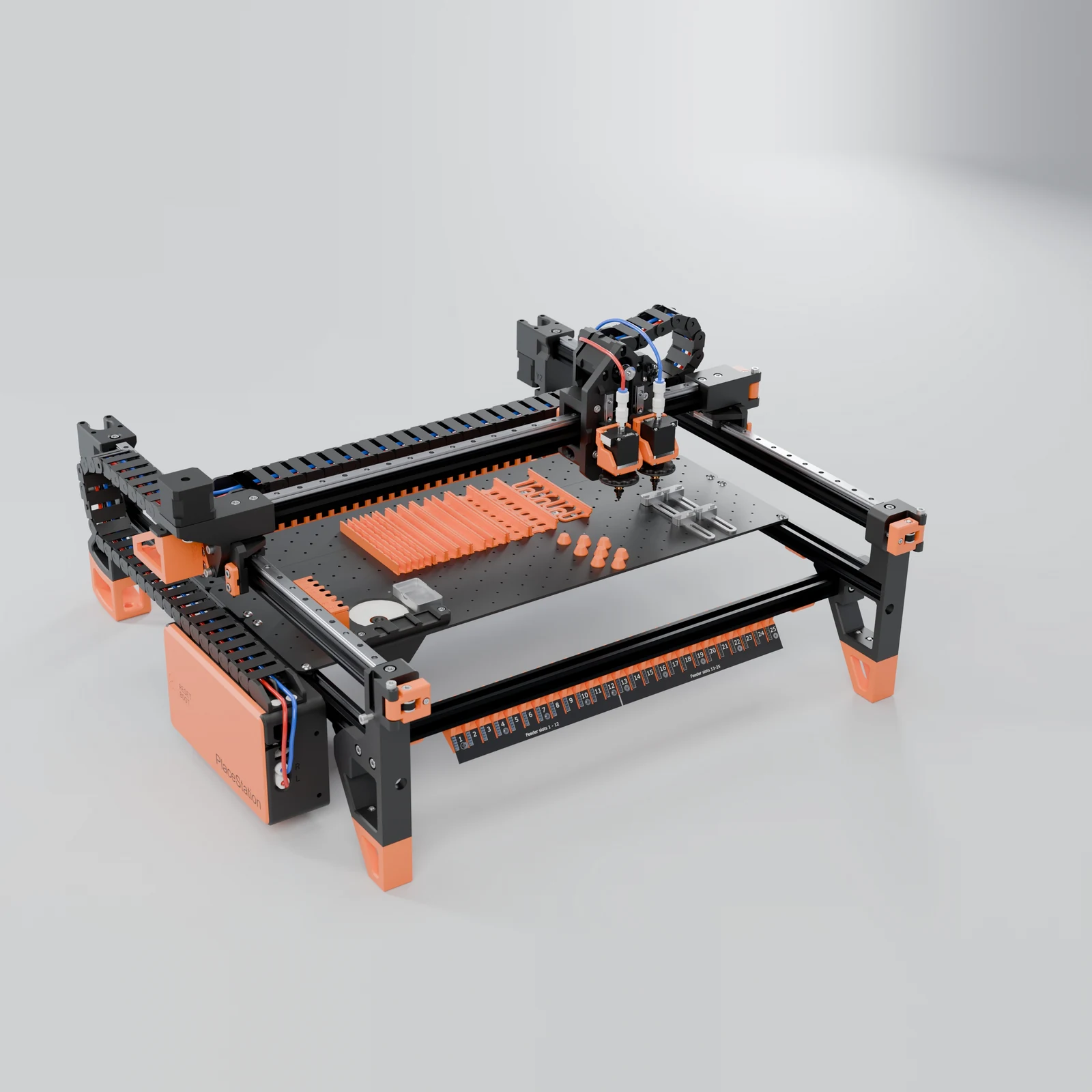

PlaceStation is a precision desktop SMT pick-and-place machine, designed and built in Kalyan, Maharashtra. It brings fine-pitch PCB assembly in-house — placing components down to 0402 with dual-camera vision, running the open-source OpenPnP platform — without the cost or lead time of outsourced assembly.
- Vision-assisted placement down to 0402, BGA to 0.8 mm pitch
- Native OpenPnP — open-source, no proprietary lock-in
- Dual 1080p cameras for board alignment and part centering

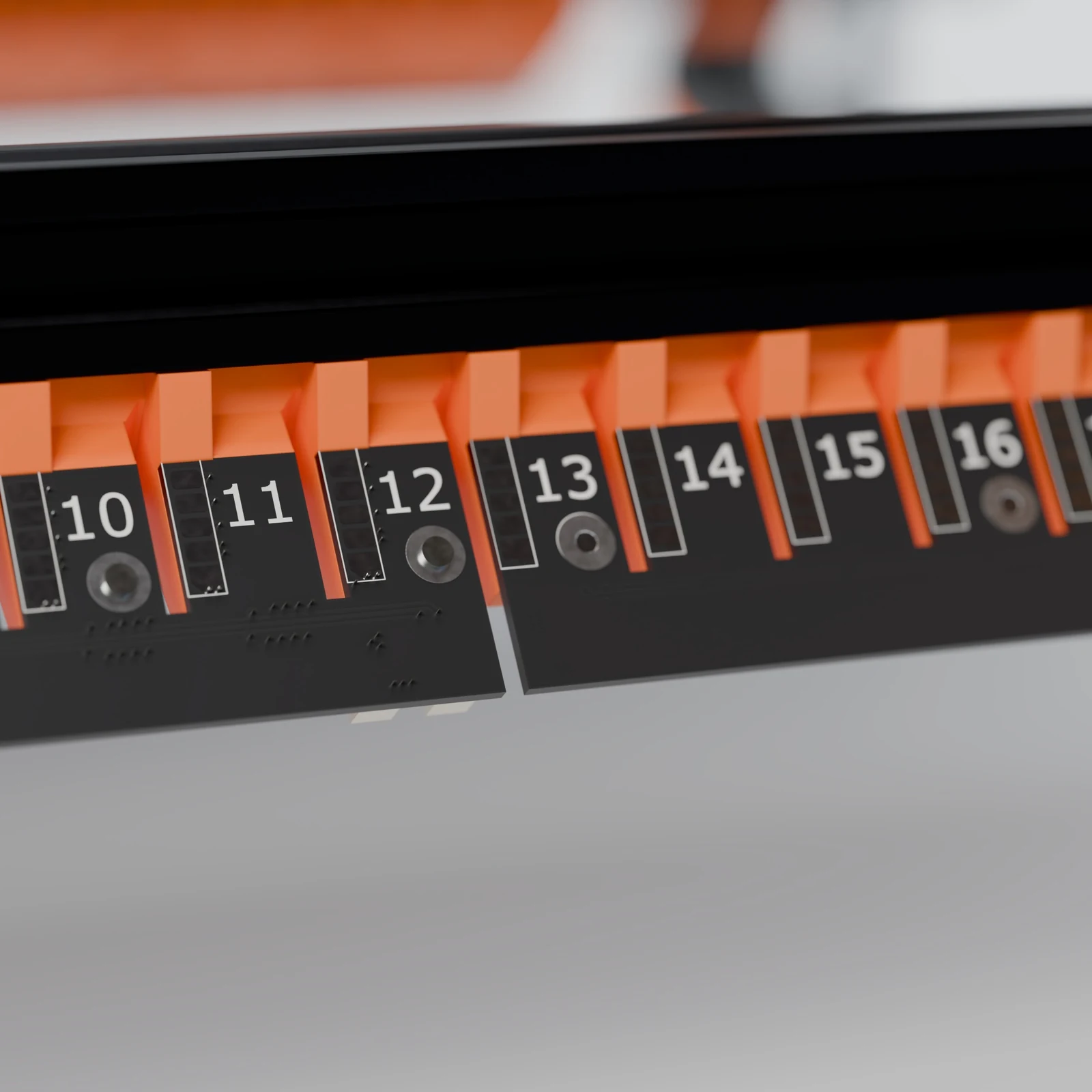

- 8 / 12 mm powered tape feeders plus strip feeders
- Base and Pro configurations for different run sizes
Designed & made in India by Tejwani Industries Pvt. Ltd. Full specifications and what's in the box are shown below. For a tailored configuration or datasheet, contact placestation@zohomail.in.
Unboxing and assembly
Scroll to unbox a PlaceStation, lay out the modules and bolt it together on a desk. These are the real CAD parts.
- Open the boxTwo laser-cut foam trays, every module in its own cavity.
- Lay it all outFeeder rails, gantries, control box, plates, cable chains and the hardware kit, side by side.
- Clear a deskA sturdy table of about 120 × 80 cm gives the machine room to work.

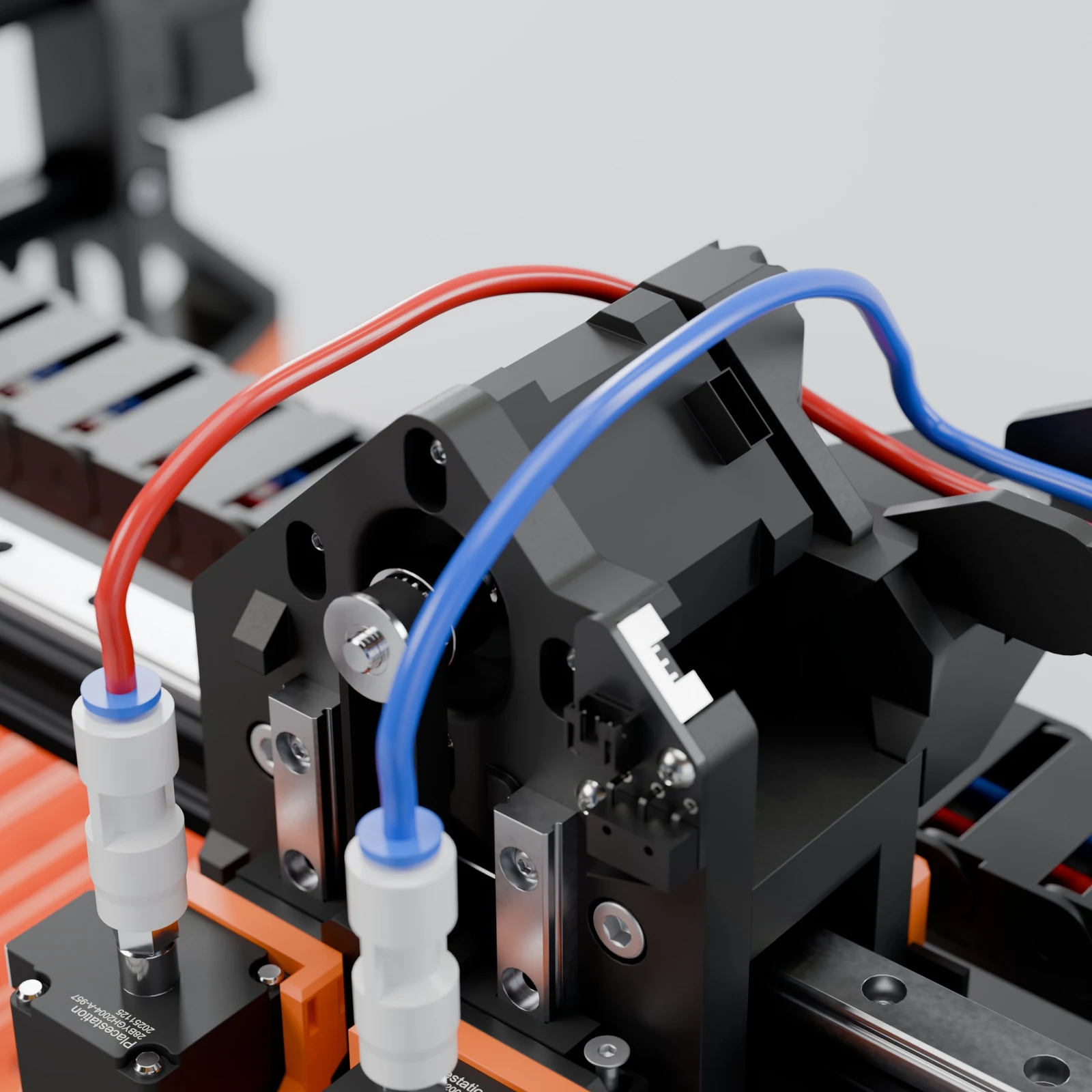

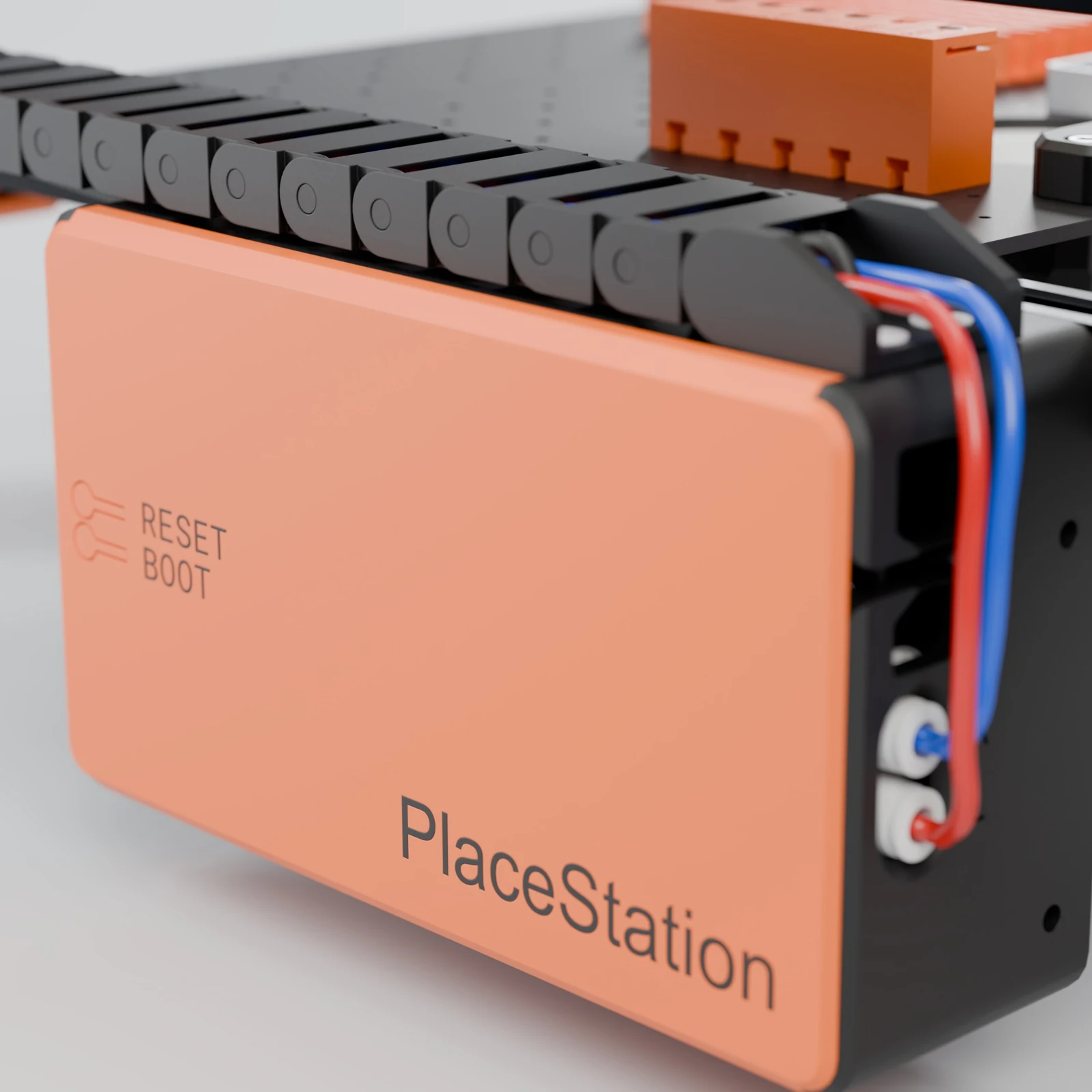

- Bolt it togetherLegs, feeder rails, X gantry, plates and control box, then the cable chains and vacuum tubes.
- Ready to calibratePlug it in and run the first calibration.
32 × 18 × 12 in7-ply carton
18 kgShipping weight
120 × 80 cmDesk space
